SAB & Ultra Drain Range

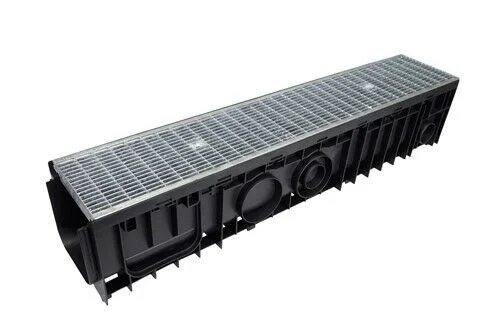

SAB Drain 601 combines the flexibility and durability of a Polypropylene drainage channel unit whilst still being able to satisfy the strength requirements for situations that require accessibility for passenger and light commercial vehicles. This rated channel and grate has been designed to offer maximum versatility while delivering a lifetime of low maintenance service. Each galvanised grate comes with a 2 point security fixing, to keep it rattle free from vehicular movements and secure it from unauthorised access. “Heel Guard” type grate.


  • SAB drain 601 series galvanized (W) 100mm x
    (H) 100mm

  • SAB drain 601 series galvanized (W) 150mm x
    (H) 150mm

  • SAB drain 601 series galvanized (W) 200mm x
    (H) 150mm

  • SAB drain 601 series galvanized (W) 200mm x (H) 200mm

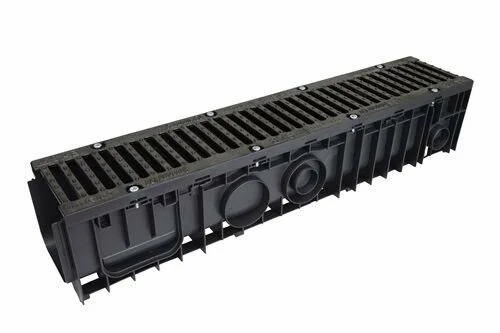

SAB Drain 704 provides the ultimate desirability for design and functionality of any drainage channel available to the civil construction market. From its lightweight channel unit to the high strength cast iron grate, the flexibility and durability of this product is able to satisfy the most demanding requirements placed upon it. This rated channel and grate has been designed for situations that require accessibility for heavy commercial vehicles as well as being able to cater for the needs of highway use. Each grate is equipped with an ‘8 point’ security fixing system, to keep it rattle free from vehicular movements and secure it from unauthorised access.


  • SAB drain 704 series cast iron (W) 100mm x (H) 100mm

  • SAB drain 704 series cast iron (W) 150mm x (H) 150mm

  • SAB drain 704 series cast iron (W) 200mm x (H) 150mm

  • SAB drain 704 series cast iron (W) 200mm x (H) 200mm

  • SAB drain 704 series cast iron (W) 200mm x (H) 300mm

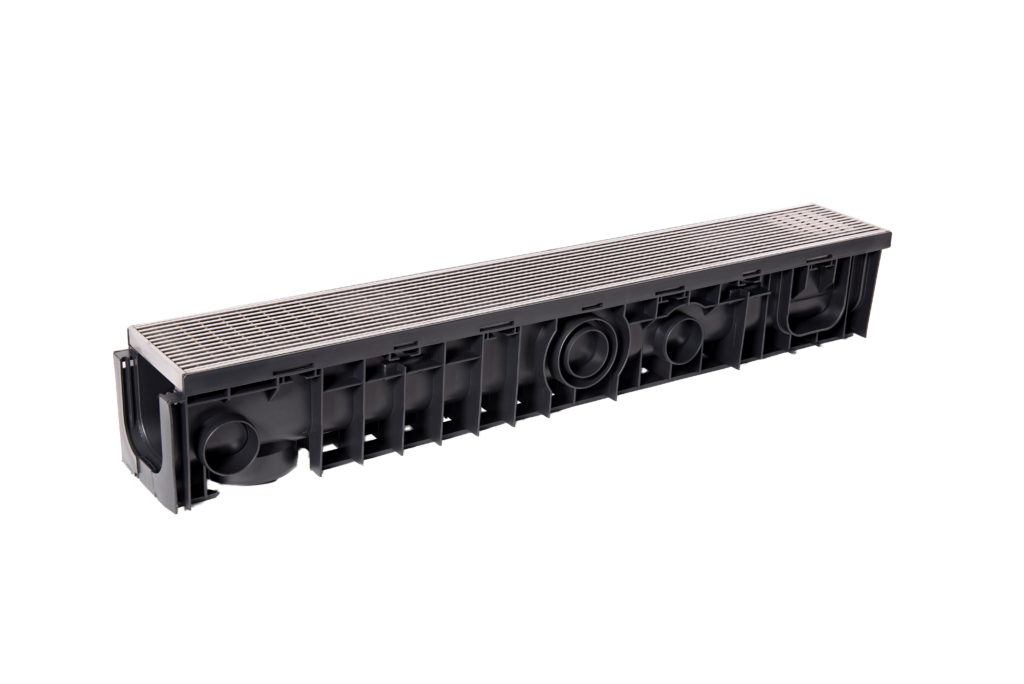

SAB Drain 900 Elite Range has been developed for the high end architectural market incorporating a 304 Stainless Steel Wedge wire “Heel Guard” type Grate design that is both stylish and appealing while still being able to meet the requirements of the industry. This rated polypropylene channel offers the maximum versatility while delivering a lifetime of low maintenance. Options include Plain Wire Grating, Anti-Slip buttons giving the grate a slip resistance surface and 2 point security lock downs for Anti- theft piece of mind. SAB900 is also available in 316 Stainless Steel.


  • SAB drain 900 series Elite Stainless Steel
    (W) 100mm x (H) 100mm

  • SAB drain 900 series Elite Stainless Steel
    (W) 150mm x (H) 150mm

  • SAB drain 900 series Elite Stainless Steel
    (W) 200mm x (H) 150mm

  • SAB drain 900 series Elite Stainless Steel (W) 200mm x (H) 200mm

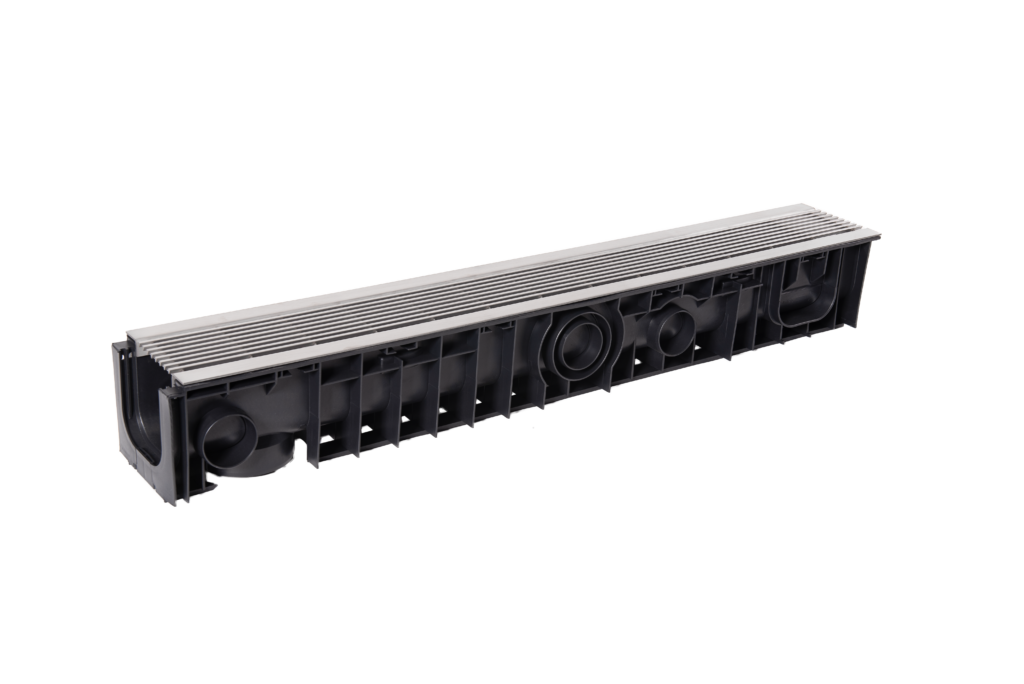

SAB Drain 951 Stainless Steel Wedge Wire Grated channel is SAB Drains latest edition to the market. Manufactured from Class A stainless steel this cutting-edge grate gives you the architectural desired look to finish off your project. Sleek lines and slimline design gives it the versatility to be used in variety of locations swimming pool surrounds, shopping centres, pedestrian walkways and more.With its flat edge-less design this grate will give your tiles the high end finish whilst maximising the surface water drainage easily.


  • SAB drain 951 series Stainless Steel
    (W) 100mm x (H) 50mm

  • SAB drain 951 series Stainless Steel
    (W) 100mm x (H) 100mm

  • SAB drain 951 series Stainless Steel
    (W) 100mm x (H) 150mm

Ultra Drains


The Ultra Drain UD100 Alloy grating is extruded in 6063A Aluminum alloy to provide a high tensile top with very consistent extruding qualities. This is then marine anodized to give a very highly corrosive resistant product. Where additional grip is required for safety reasons you can get the Sure Grip grating which gives a textured finish instead of the smooth anodized finish. These drains can either be locked into place between pavers or concreted into place, dependent upon which application the Ultra Drain is being used.

  • Ultra Drain UD100 (W) 100mm (H) x 100mm x (L) 1.8m

The Ultra Drain UD60 range of products is made from high quality PVC resin mixed with UV stabilisers and CPVC to ensure a high quality robust drain suitable for many applications. The shape of the drain base with the space age core fluted walls provides good strength and enables the Ultra Drain to be suitable for light vehicular traffic up to 700 Kg. per inflated wheel at a maximum speed of 25km/hr.

  • Ultra Drain UD60 (W) 60mm x (H) 100mm x (L) 2.8m

The Ultra Drain UD40 top quality drain has the same standard features as the UD100 and 60 but has the additional advantage of being only 40mm deep. This makes the UD40 ideal where shallow screeds are required to ensure the concrete integrity is not compromised. The UD40 comes with a 40mm spigot that is completely flexible as to where it is to be fitted and for larger water flows a 65mm bottom outlet are also available.

  • Ultra Drain UD40 (W) 40mm x (H) 100mm x (L) 1.8m

All Ultra Drains sizes are available with;

  • End Cap

  • Joiner

  • Spigot

  • Corner

  • Tee Section

  • Bottom Outlet

  • Polyformer


Other SAB & Ultra Drain products are available to order.
Please contact us, give our team a call or visit one of our 3 sales and
display centres at Yallah, Bomaderry and Batemans Bay.
